Sleeps 4
-
3 Slides
-
Bunk Over CabBath and a Half
-
40ft Long
-
LUNAR LITE

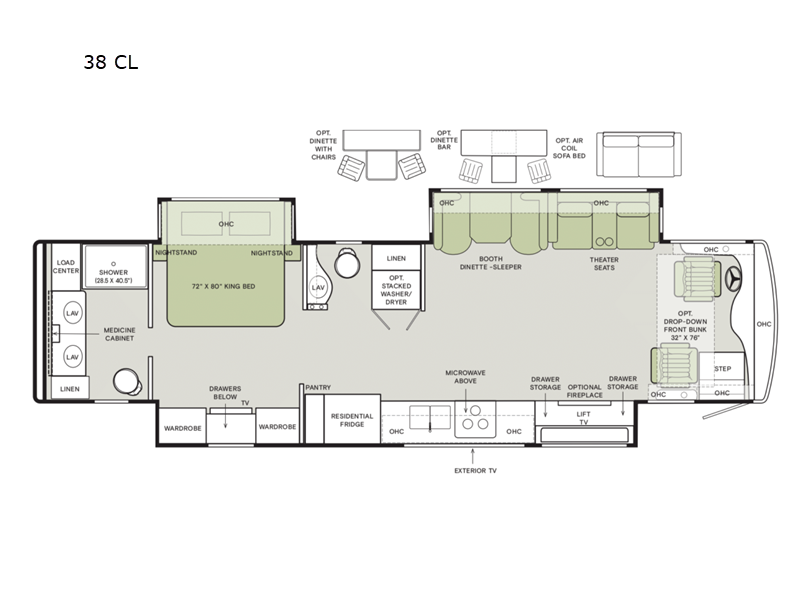

38 CL Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 39 ft 6 in | Ext Width | 8 ft 5 in |
Ext Height | 12 ft 10 in | Int Height | 7 ft |
Interior Color | LUNAR LITE | Hitch Weight | 5000 lbs |
GVWR | 29800 lbs | Fresh Water Capacity | 70 gals |
Grey Water Capacity | 65 gals | Black Water Capacity | 65 gals |
Tire Size | 255/80R 22.5 | Furnace BTU | 65000 btu |
Fuel Type | Diesel | Engine | Cummins B6.7 |
Chassis | Freightliner XCS Straight Rail Rear Engine Diesel | Horsepower | 340 hp |
Fuel Capacity | 90 gals | Wheelbase | 252 in |
Available Beds | King | Torque | 700 ft-lb |
Refrigerator Type | Stainless Steel Residential with Bottom Freezer | Refrigerator Size | 18 cu ft |
Convection Cooking | Yes | Cooktop Burners | 3 |
Shower Size | 28.5" x 40.5" | Axle Weight Front | 10800 lbs |
Axle Weight Rear | 19000 lbs | LP Tank Capacity | 20.3 gals. |
Water Heater Type | Truma AquaGo Comfort Instant | AC BTU | 30000 btu |
Basement Storage | 118 cu. ft. | TV Info | LR TV, BR TV |
Awning Info | Side-Mounted Power w/Integrated LED Lighting | Washer/Dryer Available | Yes |
Gross Combined Weight | 33000 lbs | Shower Type | Standard |
Electrical Service | 50 amp | VIN | AH5403 |
Description
Tiffin Motorhomes Byway Class A diesel motorhome 38 CL highlights:
- Full-Wall Slide
- Booth Dinette Sleeper
- Residential Refrigerator
- Full Rear Bath
- Dual Bath Sinks
- King Bed Slide Out
One step inside this spacious coach and you'll be sold! There is a bath and a half to make traveling with friends and family easier than ever. The full-wall slide will make your space feel more open, plus there is a king bed slide out and a third slide out so everyone is comfortable. This model includes theater seats, a lift TV within the entertainment center, along with drawer storage to keep movies organized, and an optional fireplace. You'll be pleasantly surprised by the full kitchen with its three burner cooktop, 1.5 cu. ft. Smart convection microwave, plus a pantry and 18 cu. ft. residential refrigerator with a bottom freezer to keep ice cream stocked up! When you're ready for some shut-eye, the master bedroom will be waiting for you, while your guests sleep on the booth dinette sleeper, or you can choose the optional drop-down front bunk for more sleeping space!
Say hello to affordable luxury with the Byway Class A diesel motorhomes by Tiffin Motorhomes. Each model includes an Allison 2500 MH 6-speed automatic transmission for power you can feel, and a Freightliner XCS straight rail rear engine diesel chassis for a strong foundation. All of your power needs will be met with an 8.0kW Onan Quiet diesel generator, 2,000-watt Pure Sine wave inverter, and (4) 6-volt, 225-amp hours flooded lead-acid house batteries. A Truma AquaGo comfort instant water heater is a feature you won't want to travel without, and the Spyder controls multiplex system keeps you in control of your units functions. It won't be hard to find luxury features inside, like the handcrafted overhead cabinetry, solid surface countertops, and full tile backsplash in the kitchen.
- 2 15,000 A/Cs w/HEAT PUMP
- 2000 WATT INVERTER
- 8.0 GENERATOR
- ALUMINUM WHEELS
- BOOTH DINETTE PS
- CENTRAL VACUUM SYSTEM
- COOKTOP/CONVECTION MICROWAVE
- DOVE LIFESTYLE LEATHER
- DUNE FLOOR TILE
- ELEC. STABILITY CONTROL/AUTO TRACT CONTROL
- EXTERIOR TV
- FCCC XCS 340HP CHASSIS
- FIREPLACE
- FREIGHT
- FULL BODY PAINT
- HYDRAULIC JACKS
- IN DASH NAVIGATION SYSTEM
- IN MOTION SATELLITE
- KING BED
- LUNAR LITE INTERIOR
- POWER DROP DOWN BUNK
- POWER DS/PS SEATS
- POWER PATIO AWNING
- PREP FOR SATELLITE
- PREP FOR SATELLITE INTERNET
- PREP FOR SOLAR PANEL
- RESIDENTIAL REFRIGERATOR
- SANDSTONE CABINETS
- SHOWERMISER
- STACKED WASHER/DRYER
- TELESCOPING LADDER
- THEATER SEATING DS
- TIRE PRESSURE SENSING
- TRUMA WATER HEATER
- WIFI BOOSTER
Features
Standard Features (2026)
Chassis and Drivetrain
- Freightliner® XCS Straight Rail Rear Engine Diesel Chassis
- Cummins® B6.7 340 HP Diesel Engine with 700 lb-ft Torque
- 160-Amp Alternator
- Allison® 2500 MH 6-speed Automatic Transmission with Lock-up Torque Converter
- Aluminum Wheels
- Front and Rear 255/80R 22.5 Tires
- (2) 12-Volt Flooded Lead-Acid Chassis Batteries
- Hydraulic Leveling Jacks with Control Panel
- Freightliner VFS Air Ride Front Suspension
- Freightliner® V-Series V-Ride Rear Suspension
- Custom Tuned Sachs® Shock Absorbers
- Rear Radiator
- Front Disc Brakes and Rear Drum Brakes
- Full Air Brake System with Automatic Slack Adjusters
- Single Stage Variable Geometry Turbocharger (VGT) Engine Brake
- Manual Parking Brake
- Driver Side Fuel Fill
- Tire Pressure Monitoring
- Automatic Traction Control
Construction
- Seamless One-piece Gel-coat Fiberglass Molded Roof Cap
- 5 1/4" Formed Roof Insulation
- Tubular Aluminum Roof Skeleton Frames
- Quiet Air Cooling System
- One-piece Molded Gel-coat Fiberglass Front and Rear Caps
- Steel Cockpit Overhead Support Frame
- Crane® Composites Noble® Select All-Composite Exterior Sidewalls
- Tubular Aluminum Wall Skeleton Frames
- High-performance Thermal Insulation in Sidewalls
- Steel Floor Skeleton
- Engineered Wood Sub-flooring
- 1 1/2" Thick Thermal Insulation in Floor
- Steel Basement Construction
- Rust Protective Undercoating
- Hydraulic Slide-out Mechanisms
Electrical
- Liquid Propane (LP) Coach
- Spyder Controls Multiplex System
- Firefly Integrations Mira Module
- Centralized 7” Spyder System Main Monitor
- Interior Entryway Spyder Switch Panel
- Conveniently Located Spyder Switch Panels Throughout Coach
- 8.0-Kilowatt Onan® Quiet Diesel Generator
- Generator Slide Tray
- 2,000-Watt Pure Sine Wave Inverter Charger with Auto-Gen Start
- (4) 6-Volt, 225-Amp Hours Flooded Lead-Acid House Batteries
- (2) 15,000-BTU Air Conditioners with Heat Pumps
- Multiplex Integrated Thermostat with Built-in Temperature Sensor
- (1) 35,000-BTU and (1) 30,000-BTU Ducted Furnaces
- 50-Amp Shore Power
- Prep for Solar Panels
- Auxiliary Solar Port
- HD Over-the-air Antenna
- Park Cable and Ground Satellite Hook-up
- Prep for In-motion Satellite
- Blu-ray™ Player
- Satellite Receiver
- Prep for Wi-Fi Booster
- 12-Volt Breaker Panel
- 12-Volt Disconnect Switch
- Rotary Disconnect Switches for House Batteries, Chassis Batteries, and Inverter
- Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay
- 110-Volt Exterior Receptacle
- Surge Guard® Transfer Switch
- USB Receptacles Throughout Coach
Electrical Options
- In-motion Satellite Dish
- Wi-Fi Booster
- Starlink Prep in Sewer Compartment
Plumbing
- Truma AquaGo™ Comfort Instant Water Heater
- Water Heater Bypass System
- Aqua View Showermiser™
- Water Filter
- Water Pump Switch Access from Spyder System and Sewer Bay Board
- Low-point Water Drain Lines
- Black Holding Tank Flush System
- Gravity Water Fill
- Heated Fresh and Holding Tank Compartment via Heat Duct
- Tank Level Monitor System
- Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports
- Exterior Rinse Hose with Shower Head
- Sewer Bay Hand Sanitizer and Paper Towel Holders
Exterior
- Full-body Paint with (3) Layers of Clear Coat
- Single-colored Slide-out Endwalls
- High Performance Protective Film on Front Cap and Select Areas
- (1) Side-mounted Powered Patio Awning with Integrated LED Lighting
- Slide-out Toppers
- Side-swinging Exterior Storage Doors with Gas Shocks
- Lockable Handles on Compartment Doors
- Motion-sensor Lights in Cargo Bay
- 120-Volt and 12-Volt Outlets Inside Cargo Bays
- Charcoal Carpet Cargo Walls
- Fiberglass Reinforced Plastic Basement Floor
- Frameless, Single-Pane Windows
- Exterior Patio Light
- Daytime Running Lights
- Docking Lights
- Chrome Power Heated Side-View Mirrors with Integrated Cameras
- Fast Charge USB ports within Exterior TV Compartment
- Lightweight Entry Door with Integrated Screen
- Entry Door Grab Handle
- Deadbolt Front Entrance Lock
- Automatic Double Entry Step
- Mud Flaps
- Lippert On-The-Go Telescoping Ladder
Exterior Options
- Exterior TV with Soundbar
Exterior Paint Color Options
- Euro Blue G2 Full Body Paint
- Frosted Granite G2 Full Body Paint
- Scarlet Thunder G2 Full Body Paint
- Nasa G2 Full Body Paint
Interior
- Handcrafted Overhead Cabinetry
- Carpeted Step Well with Composite Steps
- Manual Step Well Cover
- Living Area TV
- Solid Surface Galley Countertop
- Handcrafted Slide-out Fascia
- Soft Touch Vinyl Ceiling
- Dimmable LED Lighting
- Prep for Washer and Dryer
- Carbon Monoxide Detector
- LPG Leak Detector
- Smoke Detector
- Fire Extinguisher
- Solar and Privacy Shades
- Soft-closing Drawers
- Powered Roof Vents
- Interior Grab Handle at Entry Door
- Egress Windows Throughout Coach
Interior Decor Packages
- Lunar Lite (Optional)
- Desert Retreat (Optional)
Upholstery Fabrics
- Dune Lifestyle Leather (DEP)
- Driftwood Lifestyle Leather (DEP)
Cabinetry Color Options
- Sandstone
- White Linen
Flooring Options
- Dune Luxury Vinyl
- Sea Grass Luxury Vinyl
Interior Add On Options
- Standalone Living Area Fireplace (38 CL Only)
- Stacked Washer and Dryer
- Central Vacuum System
Driver's Compartments
- White Sands Lifestyle Leather
- Dual Driver And Passenger Seat Armrests
- Swivel Bases for Driver and Passenger Seats
- Adjustable Seatbelt Brackets
- Passenger Seat Footrest
- Tilt and Telescoping Steering Wheel with Integrated Controls
- Adjustable Accelerator and Brake Pedals
- Ergonomic Dash with Graphite Accents
- Mounted Dash Fans
- Cupholders on Driver and Passenger Side
- Digital Dash Cluster
- (1) Center Storage Drawer
- Generator Start & Stop Rocker Switch
- USB Dash Receptacles
- 12-Volt Dash Receptacle
- Backlit Dash Rocker Switches
- Passenger Console Controls for Map Light, Fan, and Step Well Light
- Driver and Passenger Map Lights
- One-piece Panoramic Windshield
- Single-motor Intermittent Windshield Wipers
- Automatic LED Headlights
- Side-view Cameras
- Color Back-up Camera
- 7" High Definition LED Multichannel Monitor for Side-view and Back-up Cameras
- Stereo with AM & FM Radio, CD Player, and Satellite Radio
- Ceiling Mounted Speakers
- In-dash Navigation System
- Overhead Cabinetry with Wooden Panel Doors
- Auxiliary Start Switch
- Concealed Air Horn
- Manual Opening Driver Side Window
- Solid, Non-opening Passenger Side Window
- Powered Solar and Privacy Windshield Shade
- Manual Solar and Privacy Shades on Side Windows
Driver's Compartment Add On Options
- Electric Front Overhead Drop-Down Bunk
Dinette and Living Area
Driver Side Dinette
- 72" Booth Dinette-Sleeper (Std. 38 CL Only)
- 72" Dinette with Chairs (Opt. 38 CL Only)
- 72" Dinette Bar (Opt. 38 CL Only)
Driver Side Furniture
- 95" Super Sofa (Std. 33 FL Only)
- 68" Theater Seating (Opt. 38 BL; Std. 38 CL; N/A 33 FL)
- 68" Air Coil Sofa Bed (Std. 38 BL; Opt. 38 CL; N/A 33 FL)
Passenger Side Dinette
- 75" Booth Dinette-Sleeper (Std. 33 FL, 38 BL; N/A 38 CL)
- 75" Dinette with Chairs (Opt. 33 FL, 38 BL; N/A 38 CL)
- 72" Dinette Bar (Opt. 33 FL Only)
Dinette and Living Area Add On Options
- Passenger Side Bunk Beds (28" x 70") (Std. 38 BL; N/A 33 FL, 38 CL)
Kitchen
- 18-Cubic Foot Stainless Steel Residential Refrigerator with Bottom Freezer
- 1.5-Cubic Foot Smart Convection Microwave
- Large Kitchen Sink with Single Level Faucet and Pull-down Sprayer
- Galley Overhead Cabinets
- Panoramic Galley Window
- Task Lighting
- Full Tile Backsplash
- Solid Surface Galley Countertop, Sink, and Cooktop Cover
Cooking Appliances
- Three-Burner Liquid Propane Cooktop
- Oven Range with Liquid Propane Cooktop (Optional)
Bedroom
- Memory Foam King Mattress (72" x 80")
- Under Bed Storage
- Bedside Windows
- Overhead Cabinets with Headboard
- Bed Comforter with Throw Pillows
- Handcrafted Privacy Door
- LED Reading Lights
- Nightstand with Hardwood Finished Top
- Mounted Bedroom TV
- Centralized Entertainment Center
- Wardrobe with Drawers Underneath
Bathroom
- (1) Porcelain Master Bathroom Sink
- Solid Surface Lavatory Top
- Handheld Shower Head with Slide Bar
- Shower Skylight
- Towel and Toilet Paper Holders
- Mirrored Medicine Cabinet
- Roof Vent Fan
- Base Cabinet
Number of Bathrooms
- (1) Bathroom (Std. 33 FL Only)
- (1) Bathroom and (1) Half-Bath (Std. 38 BL, 38 CL Only)
Shower
- One-Piece Molded Fiberglass Shower (28.5" x 40.5") (Std. 33 FL, 38 CL Only)
- (2) One-Piece Molded Fiberglass Showers (28.5" x 40.5" & 34.5" x 34.5") (Std. 38 BL Only)
Toilet
- (1) Gravity Flush Toilet (Std. 33 FL Only)
- (1) Gravity Flush Toilet and (1) Macerator Toilet (Std. 38 BL, 38 CL Only)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
-
Excellent Customer Service
Staff is friendly ,and does their best to take care of things in this time of help and parts shortages -
Excellent Customer Service
We have been a loyal customer of Garrick RV for over 13 years. Certainly seems the change in ownership made a good thing even better.
We recently had our 2022 Winnebago Adventurer 30T in for warranty service and some upgrades. The service team did a stellar job!
First name removed & Patty -
Excellent Customer Service
Everyone I met was very kind and helpful especially since I am new to the RV world!
Loading
Alpin Haus - RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, prep fees, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @518-655-1621 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Current Finance Rates for Qualified Buyers
Up to $30,999 sale price | 144 months | 8.99% APR
$31,000 to $62,999 sale price | 180 months | 8.99% APR
$63,000 sale price and up | 240 months | 8.99% APR
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
